ACCESSORIES - Product Information
Junckers Sports Floor Bushings
Sport
H 2.2
H 2.2
TECHNICAL DATA
| Sizes | Diameter [mm] |
Free Hole Size [mm] |
Thickness [mm] |
| 95 | 75 | 20 | |
| 126 | 106 | 20 | |
| 170 | 150 | 20 | |
| Frame | Available in solid brass or solid stainless steel, predrilled with four screw holes. | ||
| Bushing Cover |
Available in veneered Beech plywood with four spring-loaded catches for secure fixing. Also available in Maple, Ash and Sylvaket on request. |
||
General Description
Junckers Bushings are removable access covers designed to be installed as a flush fitting insports floors.
They are ideally suited to provide access to post hole sockets for a wide range of sports requirements.

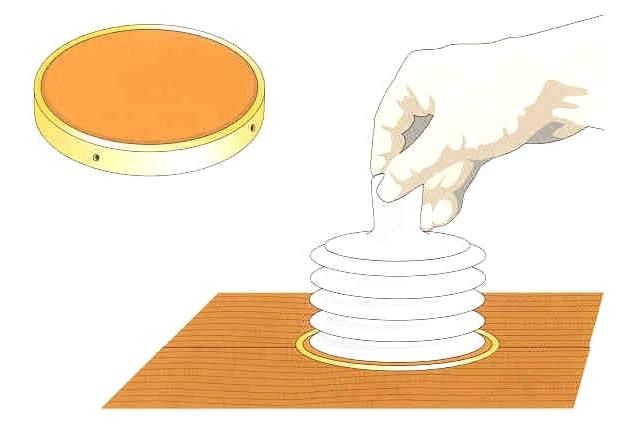

A rubber suction cup for easy removal of Bushing Covers is also available from Junckers.
TECHNICAL DATA
Sizes
Available in 3 sizes, all 20 mm thick: Diameter / Free hole size:
95 / 75
126 / 106
170 / 150
Frame
Available in brass colour, predrilled with 4 screw holes.
Bushing cover
Available in veneered Beech plywood with four spring-loaded catches for secure fixing. Also available in Maple, Ash and Sylvaket on request.

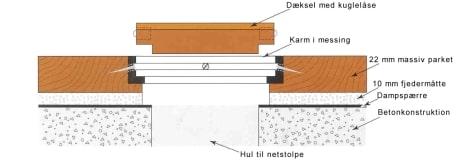

INSTALLATION GUIDELINES
Using a template and a router, cut a circular hole in the surface of the Junckers 22 mm thickboard to allow the Frame to sit flush.
Mark out the clear opening and cut this out of the board to give access to below the floor.
Screw the frame to the edge of the board using No. 6 cs/k wood screws. The cover sits in the frame and is held in place by spring loaded catches. Use the rubber Suction Cup to remove the cover
