PORTABLE A3
Facts
PERFORMANCE |
Area-elastic according to EN 14904 class A3 |
USE |
Temporary use, sport and non-sporting events Installation over ice-rinks possible |
FLOORBOARD TYPE |
Prefinished 22mm 2-strip solid hardwood parquet |
PANEL SIZE |
1/1 panel 0.92 m² - 1/2 panel 0.46 m² |
PANEL WEIGHT |
1/1 panel 15 kgs - 1/2 panel 7.5 kgs |
SUBCONSTRUCTION |
Floating floor system |
UNDERLAY |
10mm SportsFoam |
REQUIRED SUBFLOOR |
Even |
CONSTRUCTION HEIGHT |
32mm |
JUNCKERS 25 YEARS FATIGUE TEST |
✔ |
SANDING AND RE-SEALING |
Yes to bare wood 8-10 times |

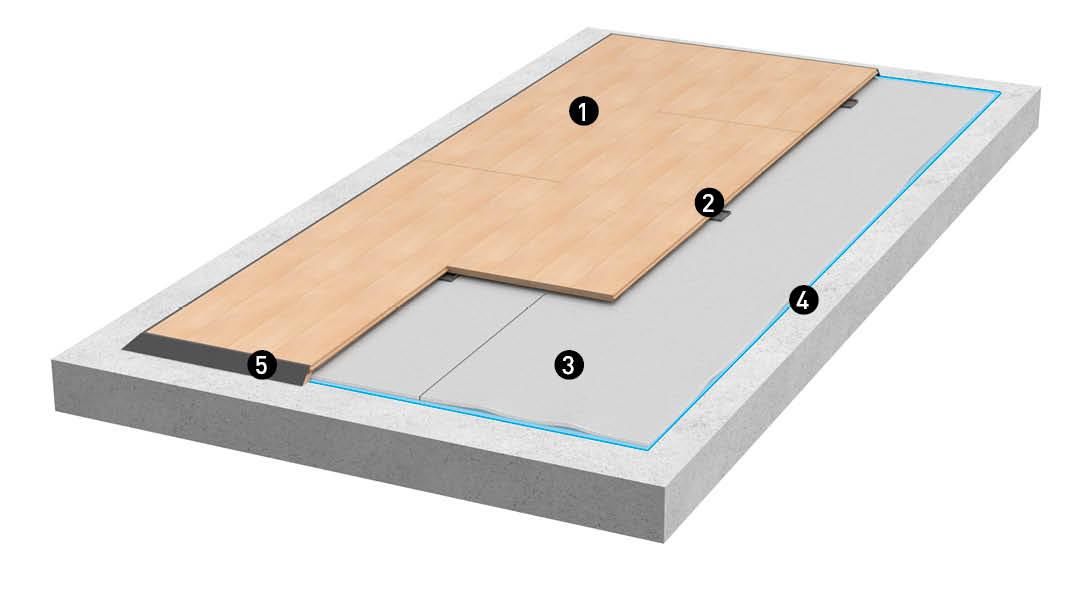

SYSTEM COMPONENTS
1. Floor panels:
- 1/1 panel 22 x 513 x 1800mm
- 1/1 panel 22 x 513 x 900mm
2. Junckers SportsFoam
3. Supporting edge reducer
|
|
REQUIREMENTS EN 14904:A3 |
TEST RESULTS |
SHOCK ABSORPTION |
≥ 40 < 55 % |
46 % |
VERTICAL DEFORMATION |
≥1.8 <3.5mm |
2.0 mm |
BALL BOUNCE |
≥ 90 % |
99 % |
FRICTION |
≥ 80 ≤ 110 |
~ 85 |
ROLLING LOAD |
≥ 1500 N |
✓ 2500 N1 |
POINT LOAD |
None |
4000 N ~ 400 kgs2 |
2. Junckers test with 100x100mm point load.
