DUOBAT 120+ | Sports Flooring

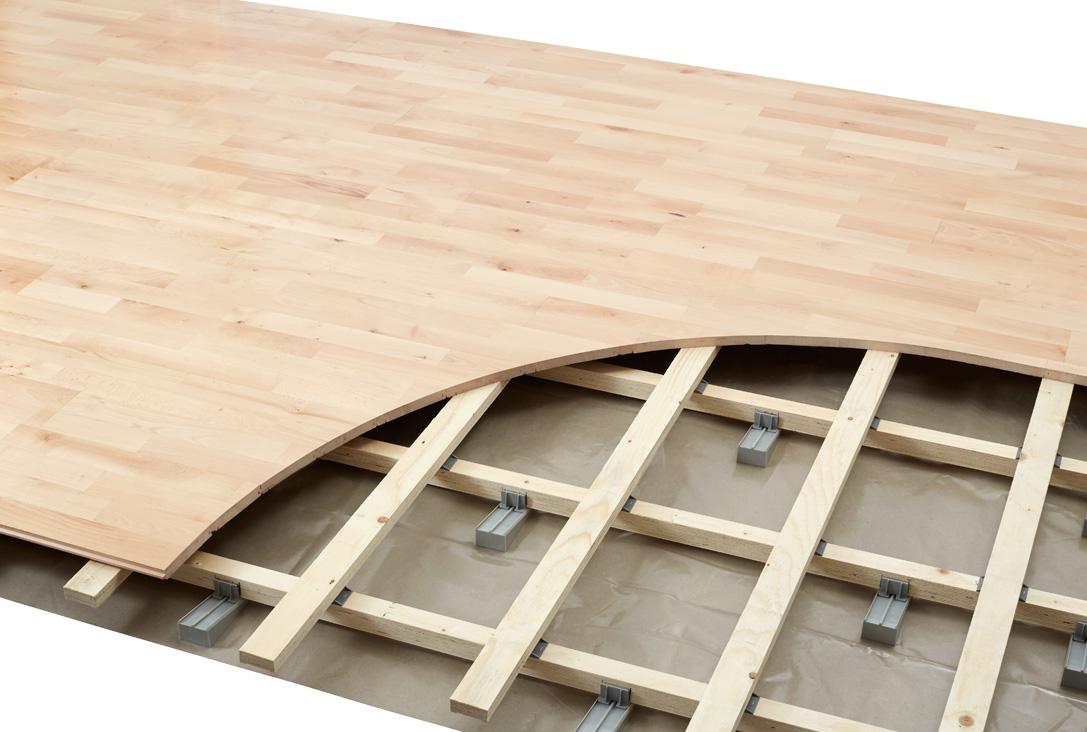

The DuoBat 120+ System provides the ultimate in high performance and safety, along with virtually unlimited leveling flexibility to accommodate all types of uneven subfloors. The 22 mm solid hardwood floor boards are fastened to a subfloor system consisting of 2-layers of cross-laid engineered battens.
The top batten has pre-attached resilient rubber pads that snap-lock into the lower batten’s J-locks. This ensures a fast, accurate and secure connection between the upper and lower battens. The lower batten rests in an adjustable and locking DuoWedge cradle, making it easy to correct even the most complicated subfloors into flat, ideal playing surfaces. Levelling the floor is conducted without use of nails and tools.
Packing blocks fitting the adjustable DuoWedge cradle are available in a variety of thicknesses to easily increase the height of the floor system as needed.
Facts
PERFORMANCE |
Area-elastic according to EN 14904 class A4 |
USE |
All types of sport Multi-functional sports halls From small leisure centres to large arenas Refurbishment |
FLOORBOARD TYPE |
Prefinished 22mm 2-strip solid hardwood |
SUBCONSTRUCTION |
Two layer batten system |
REQUIRED SUBFLOOR |
Even or uneven |
CONSTRUCTION HEIGHT, PACKINGS &
|
From 120mm to 242mm |
JUNCKERS 25 YEARS FATIGUE TEST |
✔ |
SANDING AND RE-SEALING |
Yes to bare wood 8-10 times |

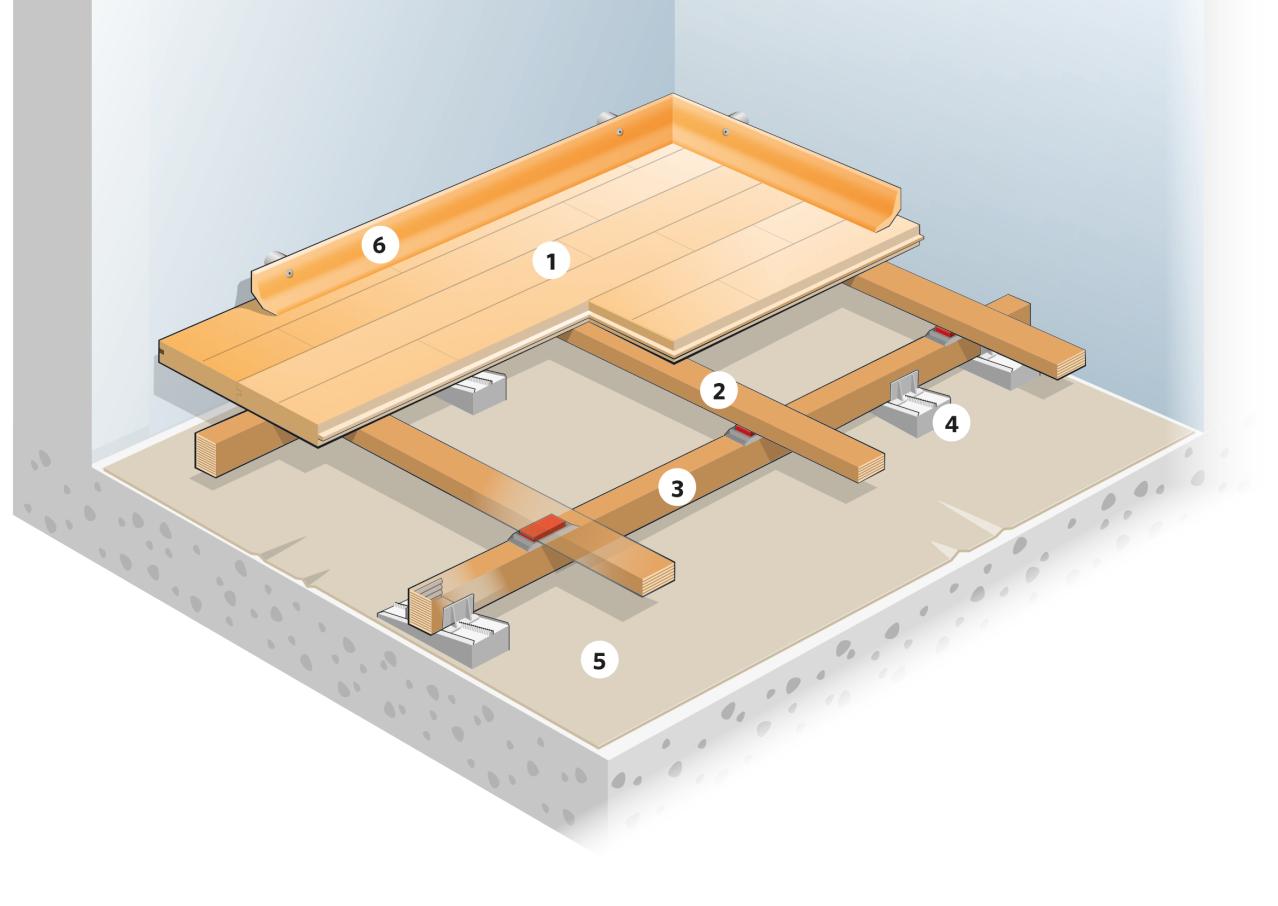

SYSTEM COMPONENTS
1. 22 x 129 x 3700mm floorboards
2. Upper batten: 25.5 x 60 x 3600mm with rubber shock pad
3. Lower batten: 39 x 40 x 3364mm with J-Lock
4. DuoWedge
5. PE moisture barrier
6. Combi sports skirting
|
|
REQUIREMENTS EN 14904:A4 |
TEST RESULTS |
SHOCK ABSORPTION |
≥ 55 < 75 % |
63% |
VERTICAL DEFORMATION |
≥ 2.3 < 5.0 mm |
2.3 mm |
BALL BOUNCE |
≥ 90 % |
95% |
FRICTION |
≥ 80 ≤ 110 |
~ 85 |
ROLLING LOAD |
≥ 1500 N |
✓ 3500 N1 |
POINT LOAD |
None |
6000 N ~ 600 kgs2 |
2. Junckers test with 100x100mm point load.
CHOICE OF FLOORBOARD
A Junckers sports floor is made from 100% solid hardwood and will last for generations. Each floor board is made from two rows of staves and is tongue and groove jointed all round.
The floors are extremely stable and therefore cause no challenges when humidity levels change through the year. We take far longer than normal over the drying process to ensure that the movements that occur naturally in all wood is fully controlled and kept to a minimum. Our Beech and Maple sports floors are dried using Junckers unique press drying method.
Our floors are ready to use as soon as they are fitted. This is because Junckers floors are sealed in the factory with our own produced hard wearing polyurethane lacquer.
All Junckers solid hardwood sports floors have the Danish Indoor Climate Certificate for low emissions of organic substances and can be delivered with either a FSC® or PEFC™ accreditation.
We guarantee fast and easy installation. Each floor board has a length of 3700mm and covers approx. 0.5 m².
