ACCESSORIES - Product Information

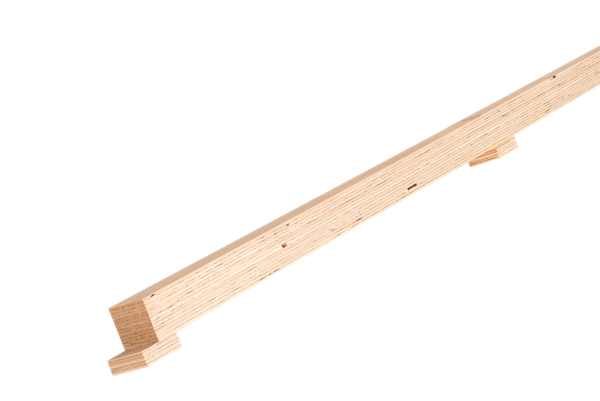

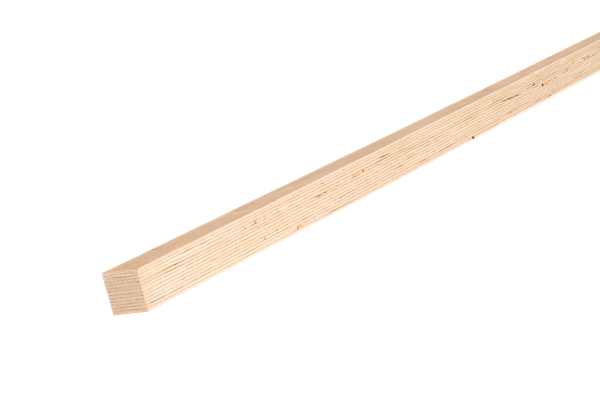

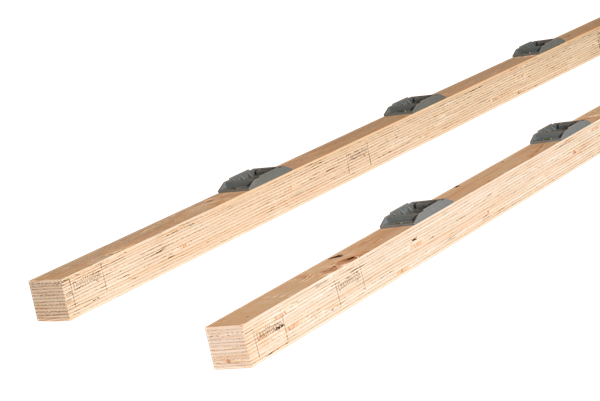

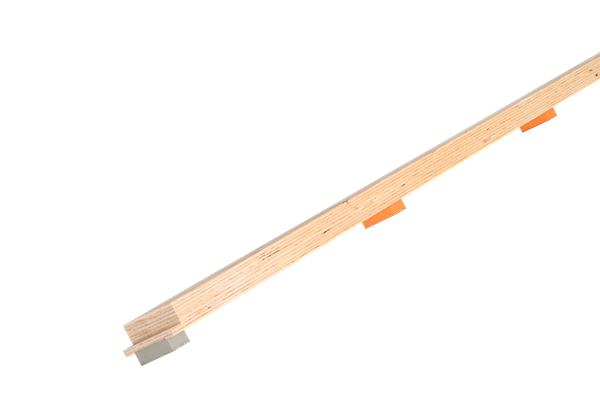

UPPER BATTENS FOR UNOBAT 62+ AND DUOBAT 120+

For Junckers UnoBAT 62+ sports floor system (single batten system), or together with Lower battens (see below) for DuoBAT 120+ sports floor system (double batten system), see D 7.2 and D 8.2.

Bundles of 16 pcs. (length 3.6 m)

Item no. 099270

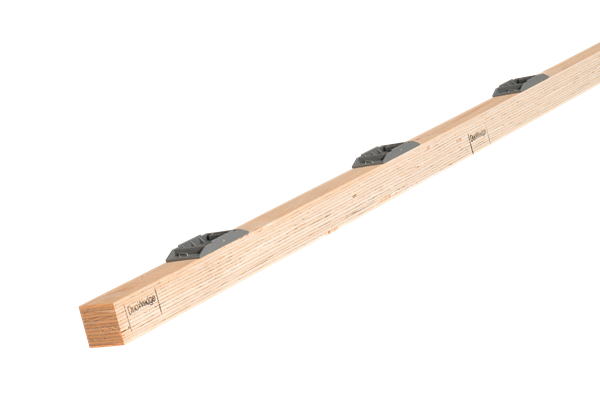

LOWER BATTENS FOR DUOBAT 120+

For Junckers DuoBAT 120+ sports floor system see D 7.2. The battens are laid in continuation of the Start battens (see below).

Bundles of 16 pcs. (length 3.364 m)

Item no. 099271

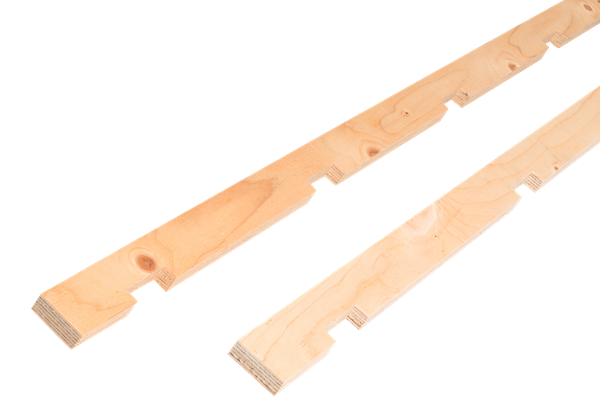

START BATTENS FOR DUOBAT 120+

For Junckers DuoBAT 120+ sports floor system, see D 7.2. The battens are used as start battens perpendicular to the gable.

Bundles of 16 pcs. (8 pcs. of 3.196 m and 8 pcs. of 1.514 m)

Item no. 099274

GABLE BATTENS FOR UNOBAT 62+ AND DUOBAT 120+

For Junckers UnoBAT 62+ and DuoBAT 120+ sports floor system, see D 7.2 og D 8.2. The battens are used as the first row of battens parallel to gables.

Bundles of 16 pcs. (length 3.6 m).

Item no. 099272

FACE WALL BATTENS FOR DUOBAT 120+

For Junckers DuoBAT 120+ Sports floor system, see D 7.2. The battens are used as the first row of battens parallel to face walls.

Bundles of 16 pcs. (length 3.364 m).

Item no. 099273

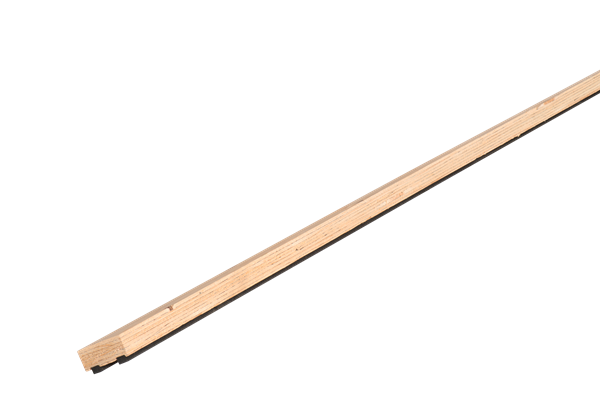

UNOBAT 45 BATTEN

Batten h19 x w45 mm.
Mounted with 9.0 x 6.3 mm resilient rubber band. Total batten height 23 mm.
See also D 11.2.

Bundles of 16 pcs. (length 3.6 m).

Item no. 098800

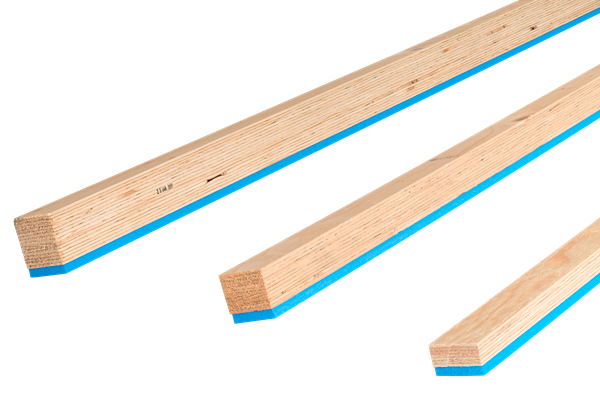

BLUBAT BATTENS

For Junckers BluBAT sports floor system, see D 6.2.

Bundles of 10 pcs. (length 2.4 m).

Item no. 099283: Batten size: 30 x 45 mm

Item no. 099284: Batten size: 45 x 45 mm

Item no. 099285: Batten size: 57 x 45 mm

SPACING BATTENS

Tools to help keeping required batten centres.
Bundles of 16 pcs. (length 3.6 m).

Unobat 45 & Blubat
c/c = 411 mm, Item number 099279
c/c = 336 mm, Item number 099289

Unobat 62+
c/c = 411 mm, Item number 099264
c/c = 336 mm, Item number 099263

Duobat 120+
c/c = 400 mm, Item number 099275

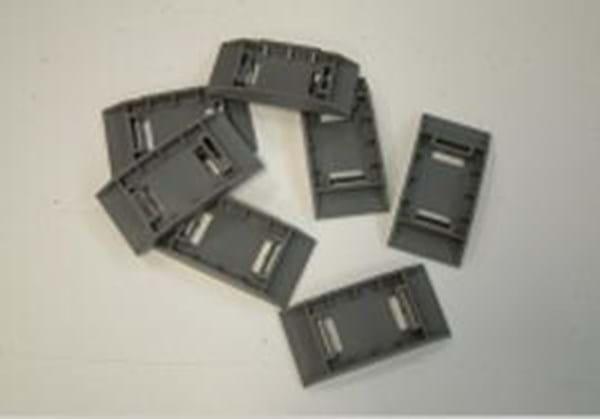

LOOSE J-LOCKS

For Junckers UnoBAT 62+ sports floor system, see D 8.2. Snap the J-Locks to the prefixed shock pads on the battens.

Boxes of 500 pcs.

Item no. 099266

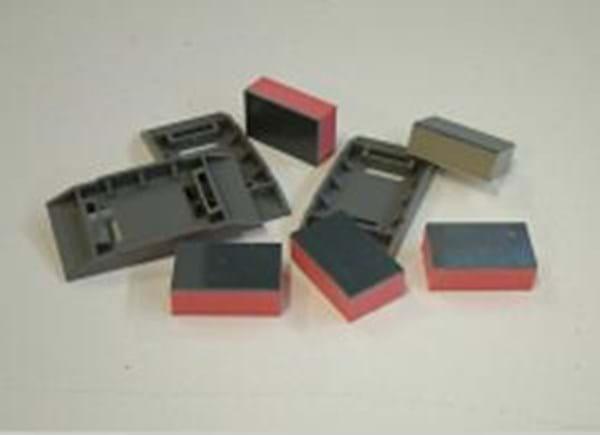

LOOSE J-LOCKS AND SHOCK PADS

For Junckers UnoBAT 62+ and DuoBAT 120+ sports floor system, see D 8.2 and D 7.2. Extra J-Locks and shock pads.

Bags with 100 pcs. of J-Locks and 90 pcs. of red- and 10 pcs. of grey shock pads.

Item no. 099265

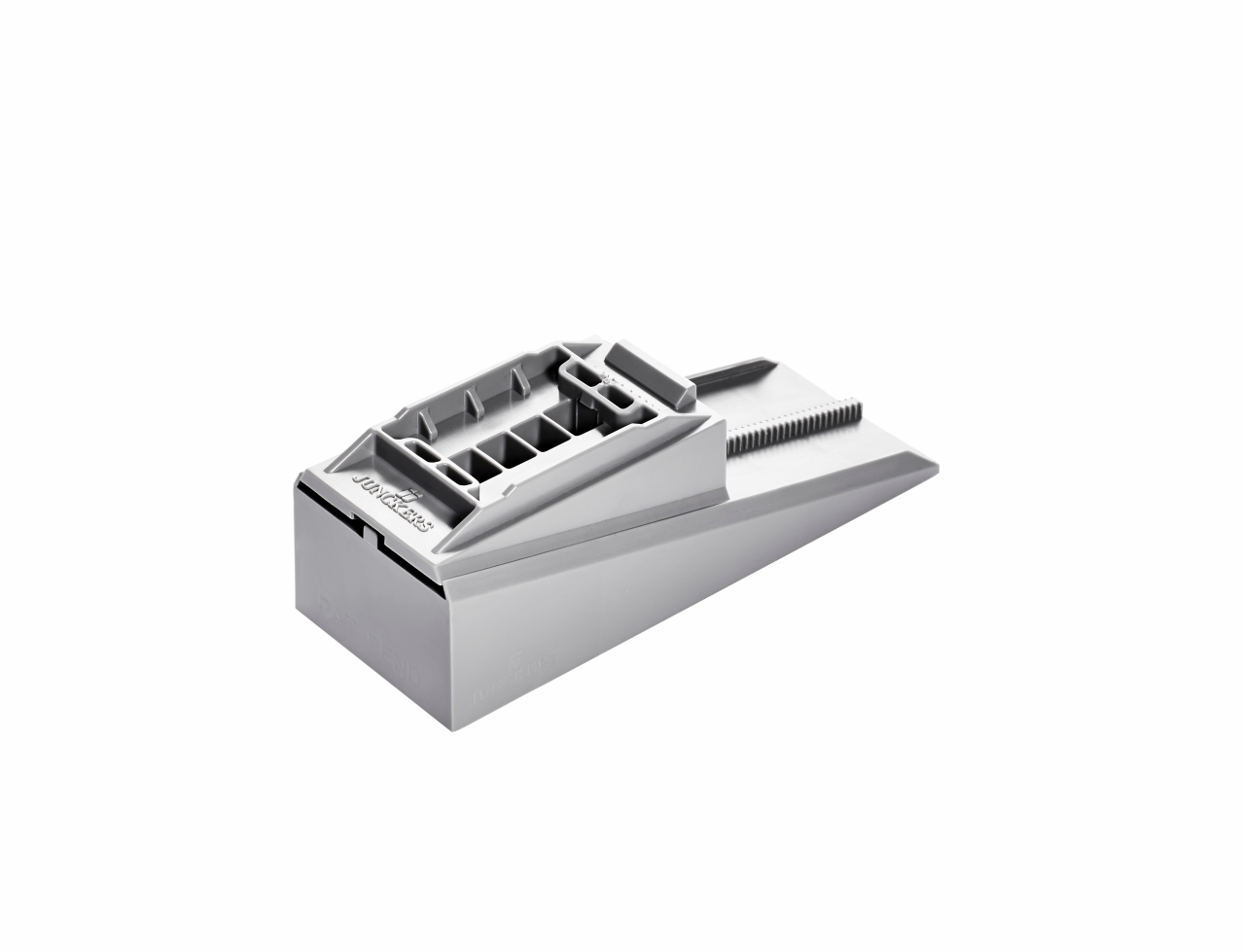

J-LOCK WEDGES

For Junckers UnoBAT 62+ sports floor system, see D 8.2. Levelling wedges to be clickedon to the prefixed shock pads on the battens.

Boxes of 150 pcs.

Item no. 099401

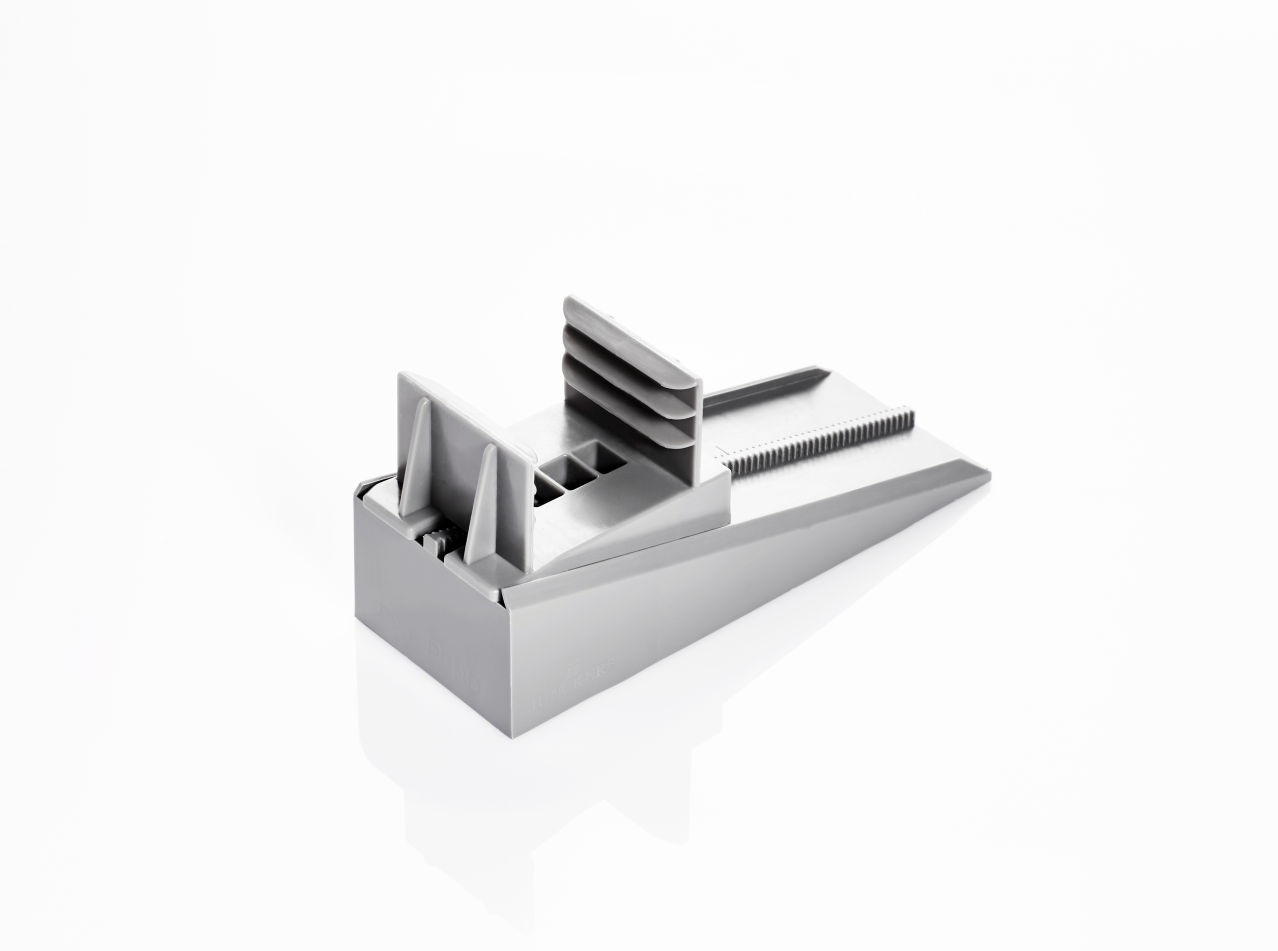

DUOWEDGES

For Junckers DuoBAT 120+ sports floor system, see D 7.2. Levelling wedges to be clicked-on to the lower battens.

Boxes of 150 pcs.

Item no. 099403

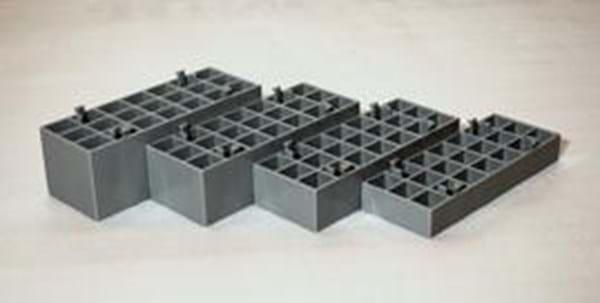

BASES FOR J-LOCKS WEDGES AND DUOWEDGES

Item no. 099406: 20 mm. Boxes of 150 pcs.

Item no. 099407: 30 mm. Boxes of 150 pcs.

Item no. 099408: 40 mm. Boxes of 100 pcs.

Item no. 099409: 50 mm. Boxes of 100 pcs.

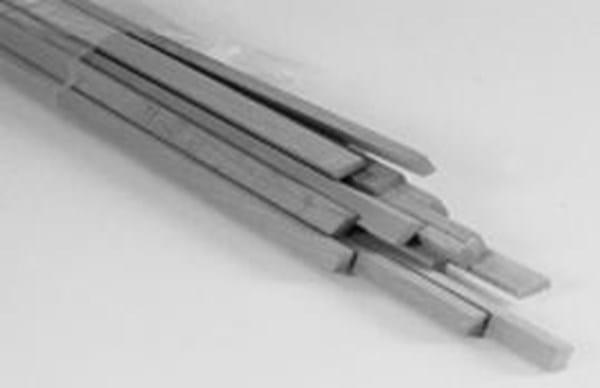

LOOSE TONGUE

Loose tongues made of beech wood. Bags of 15 x 600 mm = 9 rnm.

Item no. 095900: 6 X 12 mm for 20.5 and 22 mm flooring

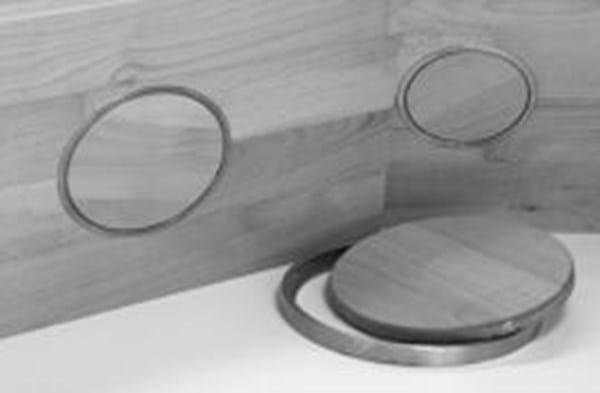

BUSHINGS

Bushing with frame in brass and cover/lid in beech.

Item no. 099115: Inner/outer diameter: 75/95 mm

Item no. 099116: Inner/outer diameter: 106/126 mm

Item no. 099117: Inner/outer diameter: 150/170 mm

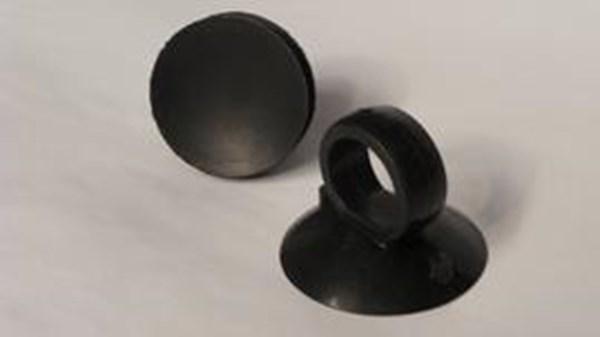

SUCTION CUP

Rubber suction cup to lift up the lid of the bushing.

Item no. 099114

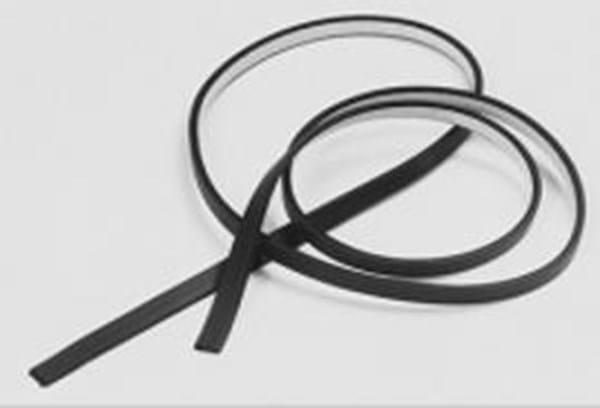

SHIPSDECKING STRIPS

3 x 8 mm black strip. To be fixed on tongue for absorption of fluctuations within the floor. Rolls of 30 rnm.

Item no. 096100

SPACERS

To keep the required 10 board measurement, 10-BM.

Bags of 300 pcs.

Item no. 099031: Green, 0.2 mm (10 BM = 129.2/140.2/185.2 mm)

Item no. 099032: Yellow, 0.4 mm (10 BM = 129.4/140.4/185.4 mm)

Item no. 099033: Black, 0.6 mm (10 BM = 129.6/140.6/185.6 mm)

Item no. 099034: Red, 0.8 mm (10 BM = 129.8/140.8/185.8 mm)

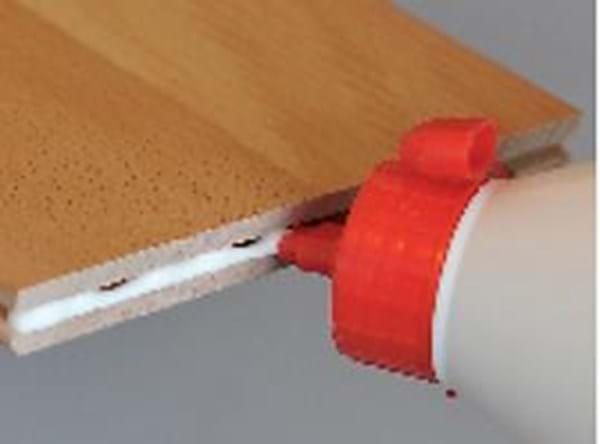

SYLVAFIX HEADER JOINT ADHESIVE

Item no. 099030: 0.75 litres

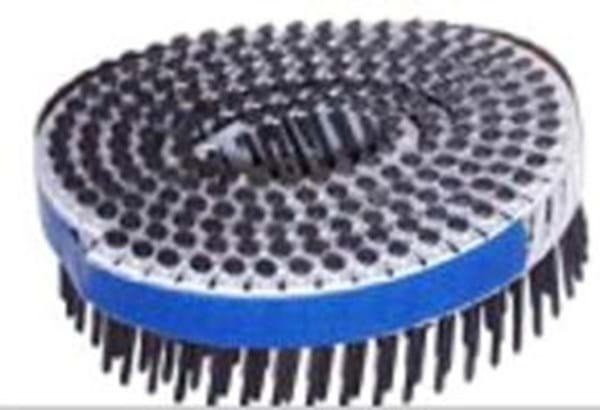

J-NAILS

2.2 x 45 mm machine nails for nailing of 22 mm floors to sports batten systems.

Item no. 099109: Boxes of 7,200 pcs.

Item no. 099107: Boxes of 1,200 pcs.

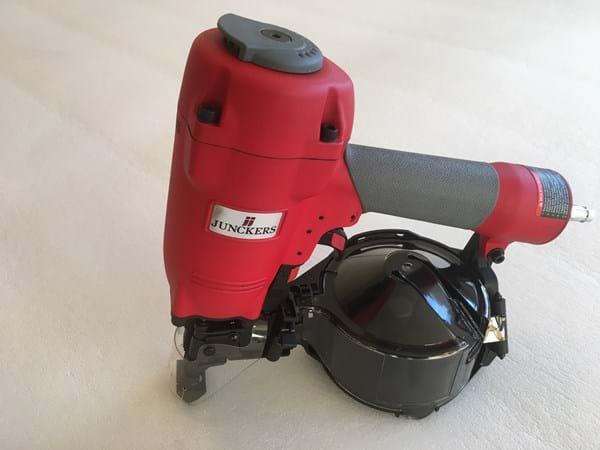

JUNCKERS PNEUMATIC NAILER

Pneumatic Nailer for Junckers J-nails.

Item no. 099129

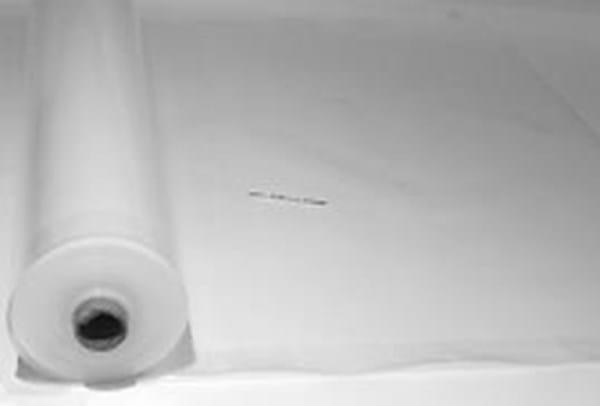

MOISTURE BARRIER

0.20 mm PE membran. 4 m wide with marked overlap.

Rolls of 100 m².

Item no. 099036

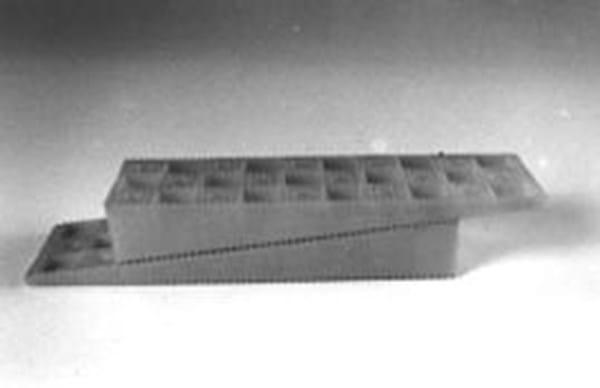

YELLOW WEDGES

Plastic wedges to be used as packing material.

Packing of 162 sets.

Item no. 099001
