ACCESSORIES - Product Information
Materials for Junckers Clip Systems
Commercial / Residential / Sport
H 3.0
H 3.0
CLIPS
Clips of hardened steel. Boxes of 250 pcs. and for some clip types also in 65 pcs.
128.8 mm. 0-hole. White label. Item no. 090500-250.
129.1 mm. 1-hole. Green label. Item no. 090600-250 / 090600-65.
129.4 mm. 2-hole. Yellow label. Item no. 090700-250 / 090700-65.
129.6 mm. 2½-hole. Black label. Item no. 092000-250.
129.8 mm. 3-hole. Red label. Item no. 090800-250 / 090800-65.
130.2 mm. 4-hole. Orange label. Item no. 091300-250.
2-WAY CLIPS
2-Way Clip for 2-way installation of Junckers solid floors. Boxes of 50 pcs.
Item no. 091000-50
EXPANSION STRIP
Boxes of 10 rnm. 12 x 12 mm rubber strips.
Item no. 095101

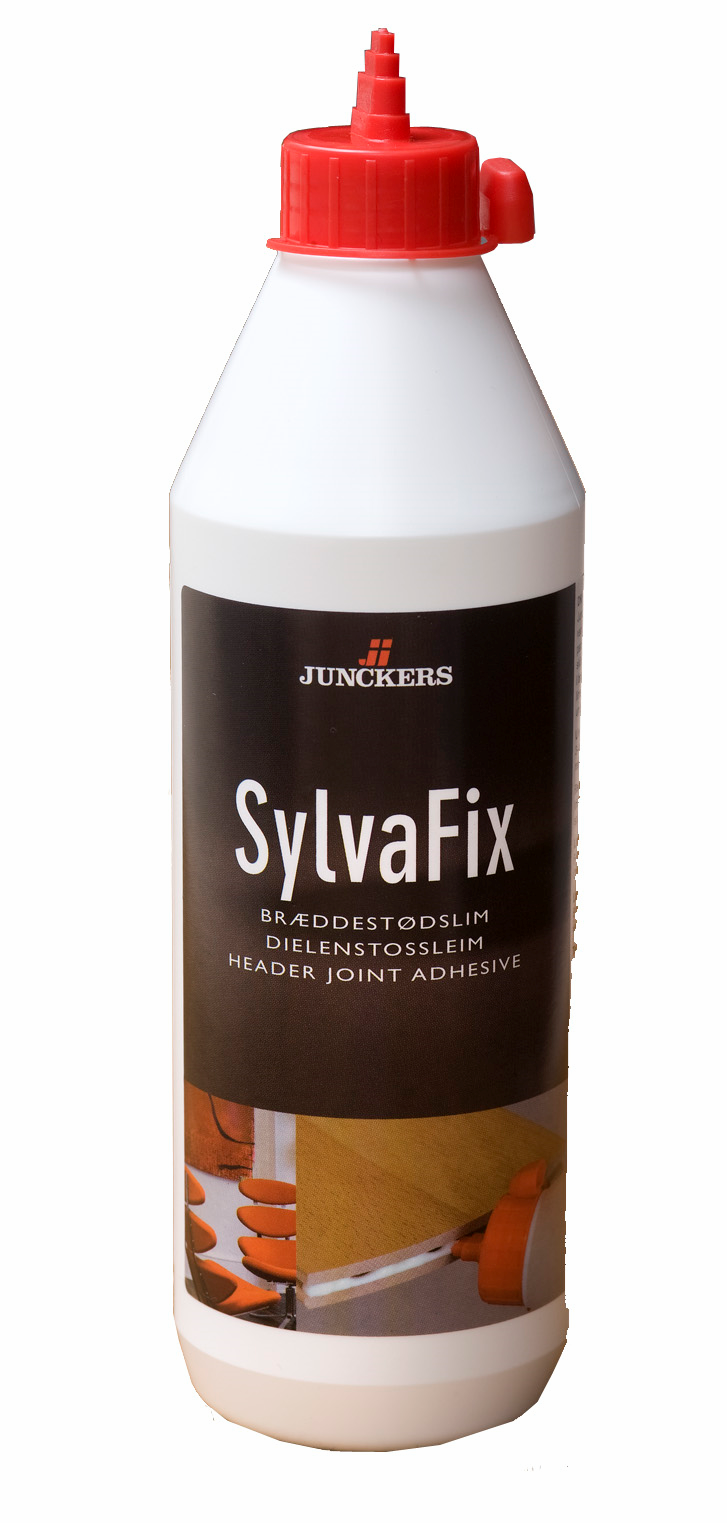

SYLVAFIX HEADER JOINT ADHESIVE
Item no. 099030: 0.75 litres.
BUSHING
Bushing with frame in brass colour and cover/lid in beech.
Item no. 099115: Inner/outer diameter: 75/95 mm
Item no. 099116: Inner/outer diameter: 106/126 mm
Item no. 099117: Inner/outer diameter: 150/170 mm

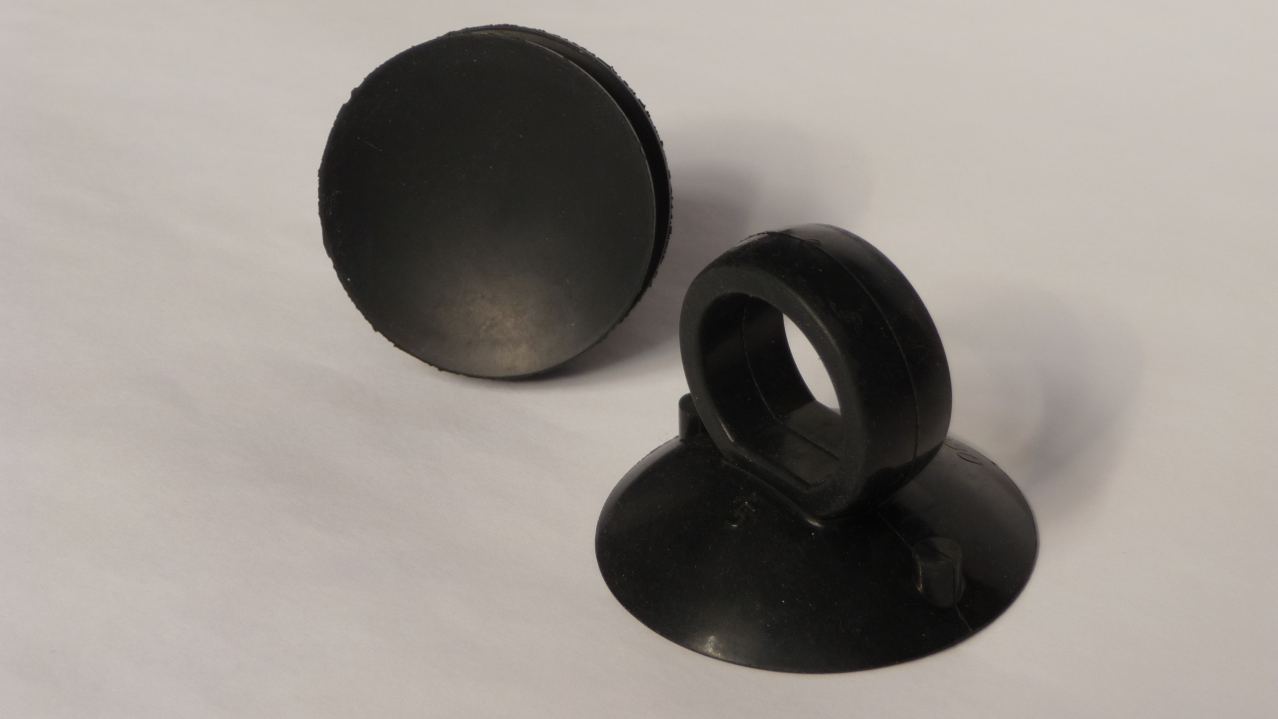

SUCTION CUP
Rubber suction cup to lift up the lid of the bushing.
Item no. 099114
LOOSE TONGUE
Loose tongues made of beech wood. Bags of 15 x 600 mm = 9 rnm.
Item no. 095900: 6 X 12 mm for 20.5 and 22 mm flooring.
Item no. 096000: 4 X 8 mm for 14 and 15 mm flooring.
POLYFOAM
2 mm damp-proof underlay for floating floors.
Item no. 096300: rolls of 30 m²
Item no. 096200: rolls of 15 m²

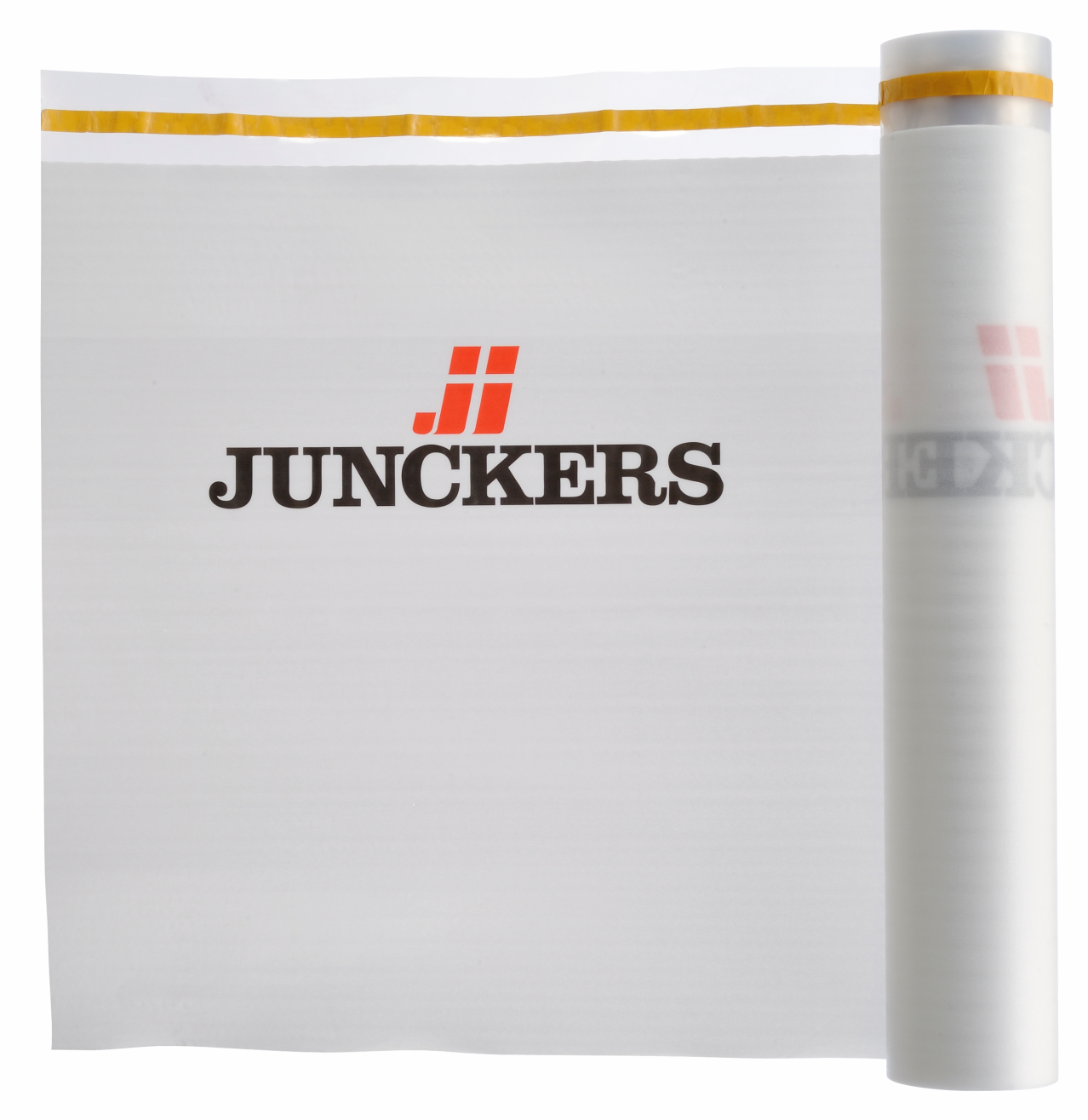

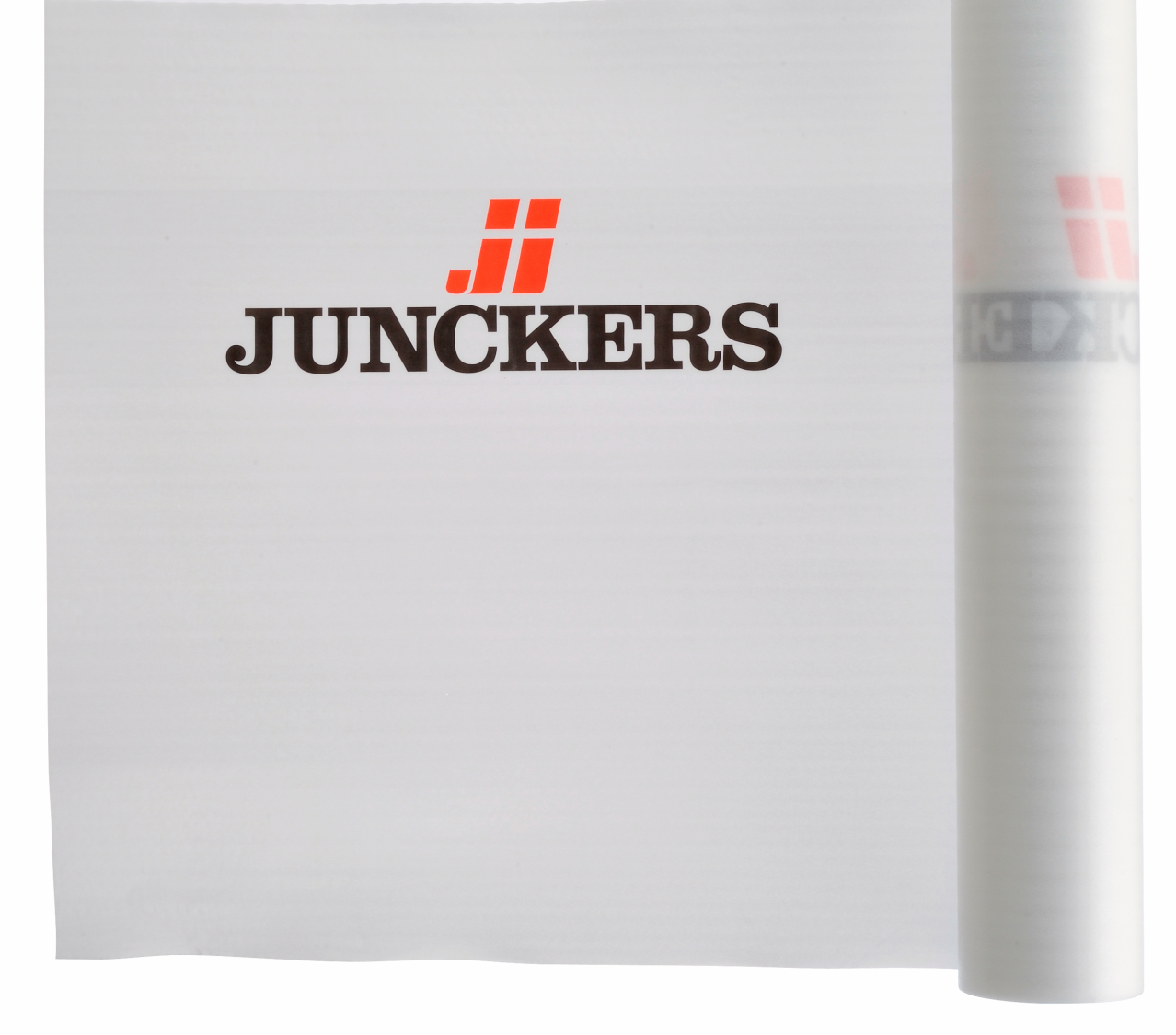

JUNCKERSFOAM
2 mm foam underlay for floating floors.
Item no. 096800: rolls of 30 m²
Item no. 096700: rolls of 15 m²
SPORTSFOAM
Resilient underlay foam for Junckers Clip Sports Floor and Junckers A3 Portable Sports Floor.
Rolls of 75 m².
Item no. 098400: 10 mm
Item no. 098500: 5 mm

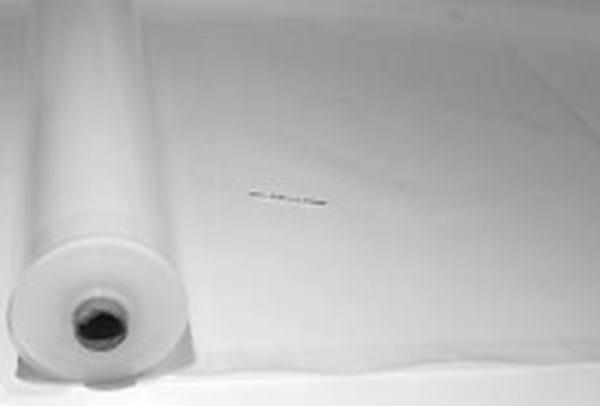

MOISTURE BARRIER
0.20 mm PE membran. 4 m wide with marked overlap.
Rolls of 100 m².
Item no. 099036
REDUCER
2 m long reducer for Junckers Clip Sports Floor System (with 10 mm Sportsfoam).
Item no. 041500
REDUCER - CORNERS
2 m long reducer to use in corner for Junckers Clip Sports Floor System (with 10 mm Sportsfoam).
Item no. 041500R: Right corner (see photo).
Item no. 041500L: Left corner (see photo).
