ACCESSORIES - Product Information

Materials for Junckers Portable sports
Sport

H 5.0



H 5.0

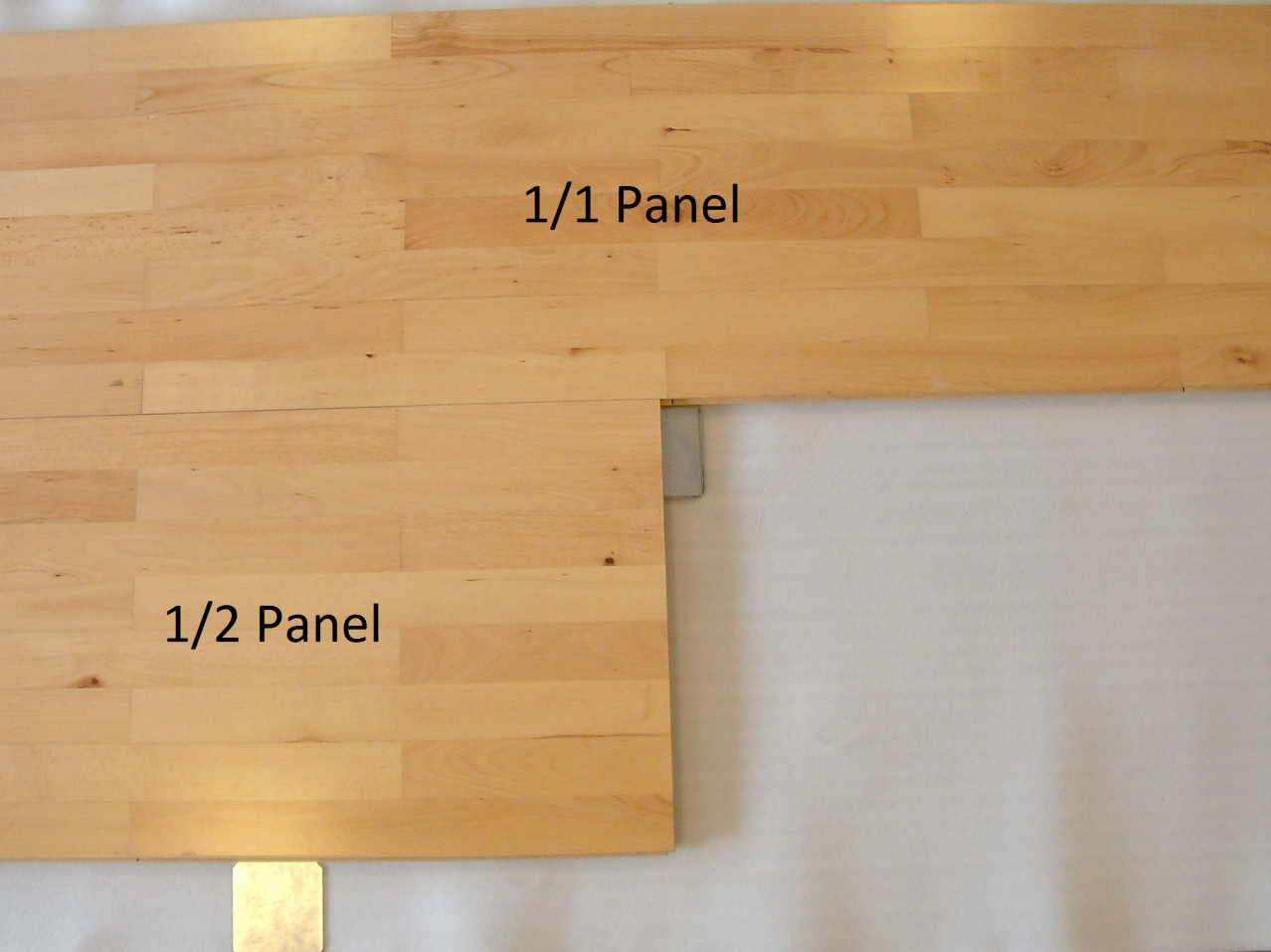

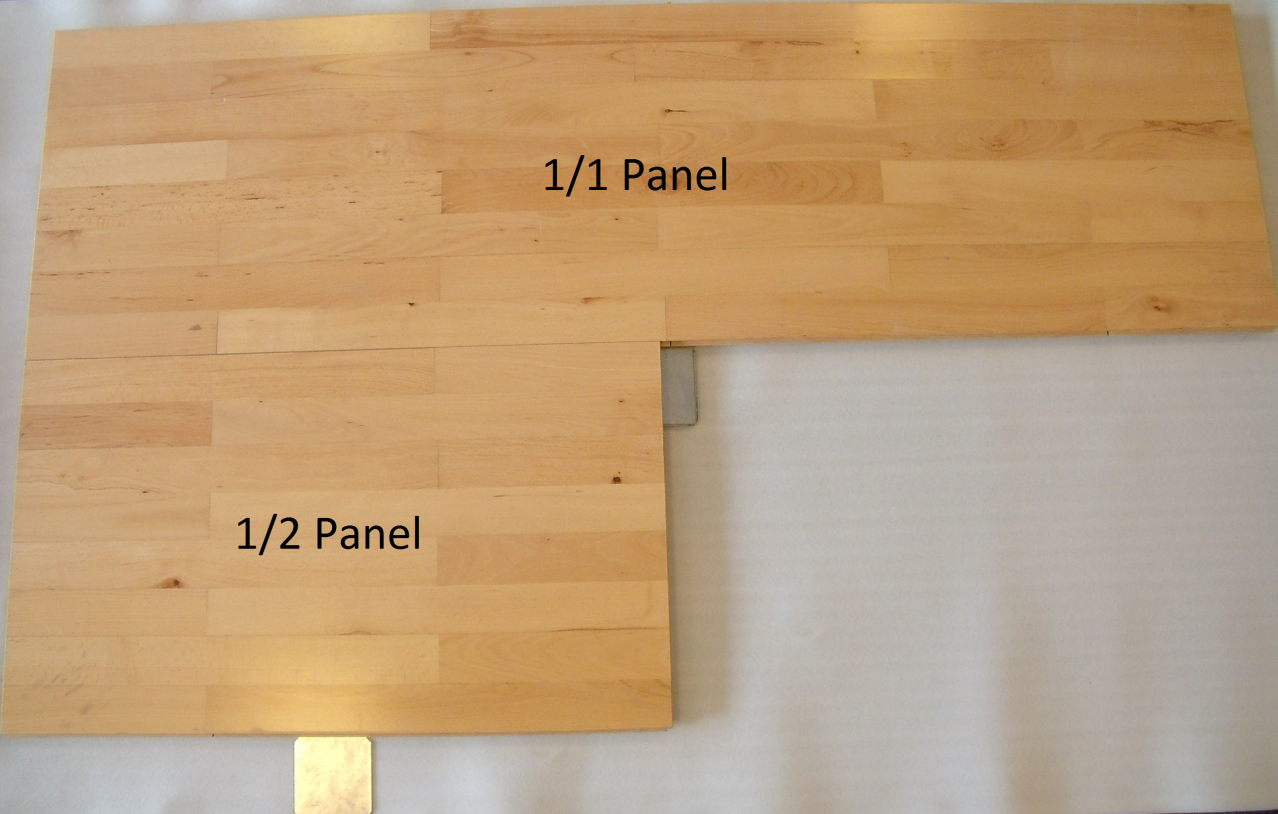

1/1 PANEL

1/1 Panel (513 x 1800 mm) for Junckers A3 and A4 Portable floors.

Item no. 041210-92: A3 Portable System.

Item no. 041010-092: A4 Portable System.


1/1 PANEL - LAST ROW

1/1Panel (513 x 1800 mm) for Junckers A3 and A4 Portable floors for the last row of panels. Panels are delivered without metal fitting in order to fit the reducer.

Item no. 041220-092: A3 Portable System.

Item no. 041020-092: A4 Portable System.


1/2 PANEL

1/2 Panel (513 x 900 mm) for Junckers A3 and A4 Portable floors.

Item no. 041210-046: A3 Portable System.

Item no. 041010-046: A4 Portable System.


1/2 PANEL - LAST ROW

1/2 Panel (513 x 900 mm) for Junckers A3 and A4 Portable floors for the last row of panels. Panels are delivered without metal fitting in order to fit the reducer.

Item no. 041220-046: A3 Portable System.

Item no. 041020-046: A4 Portable System.

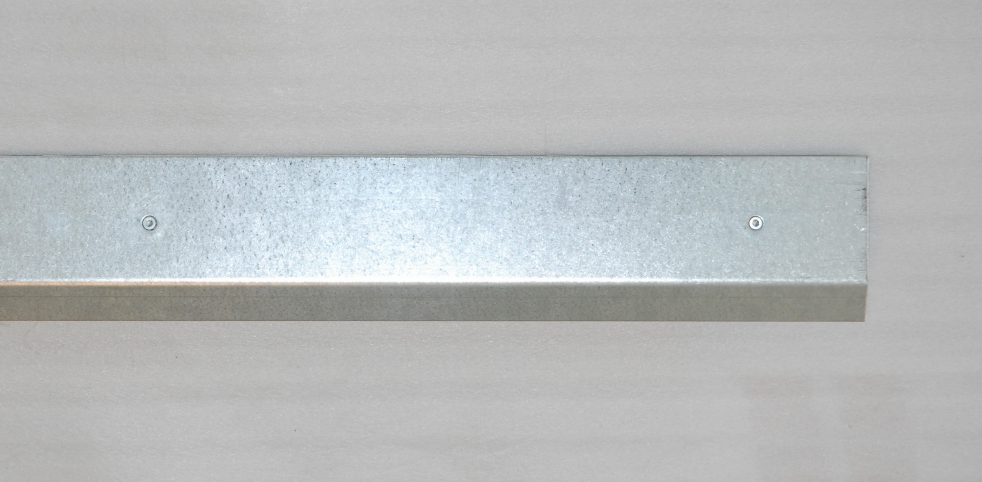

REDUCER

2 m long reducer for Junckers A3 and A4 Portable floors.

Item no. 041500: A3 Portable System.

Item no. 040700: A4 Portable System.


REDUCER - CORNERS

2 m long reducer to fit right corner (see photo):

Item no. 041500R: A3 Portable System.

Item no. 040700R: A4 Portable System.

2 m long reducer to fit left corner (see photo):

Item no. 041500L: A3 Portable System.

Item no. 040700L: A4 Portable System.

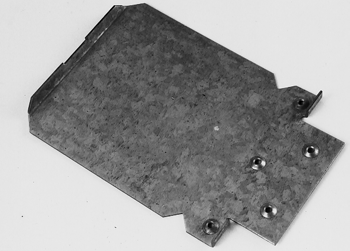

LOOSE METAL FITTING

Item no. 040300: Fitting for 1/1 elements.

Item no. 040400: Fitting for 1/2 elements.

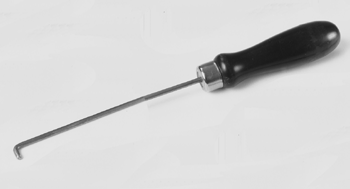

EXTRACTING HOOKS

Hook for extracting loose tongue from portable floor.

Item no. 041800

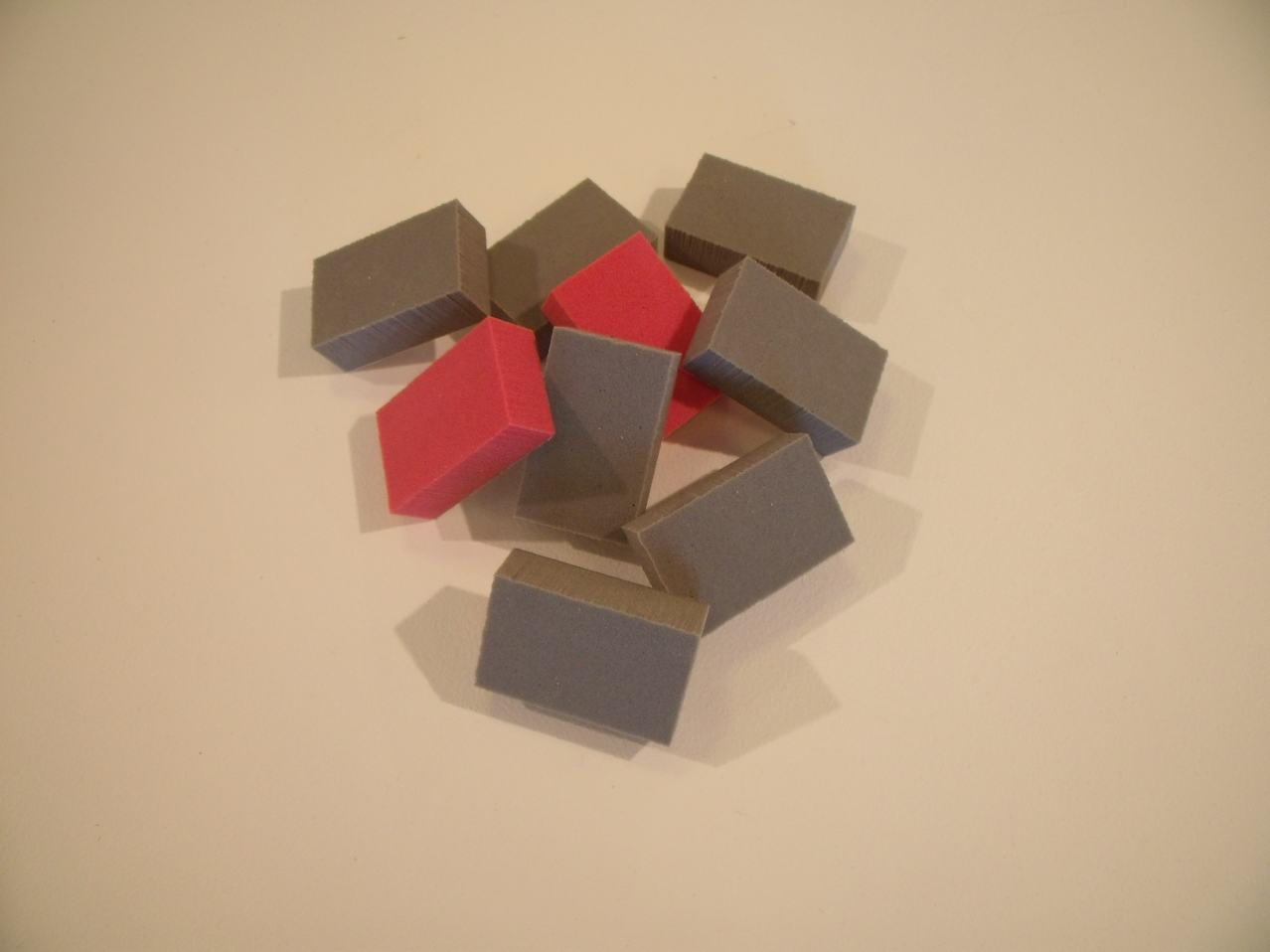

SHOCK PADS

Red shock pads

Loose shock pads for the A4 Portable system. To be mounted beneath the battens.

For reinforcement, bushings and as spare parts.

Box of 100 pcs.

Item no. 099262

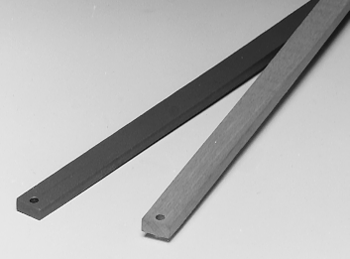

LOOSE TONGUE

In plastic. 5.5 x 12.5 x 513 mm

Item no. 099045

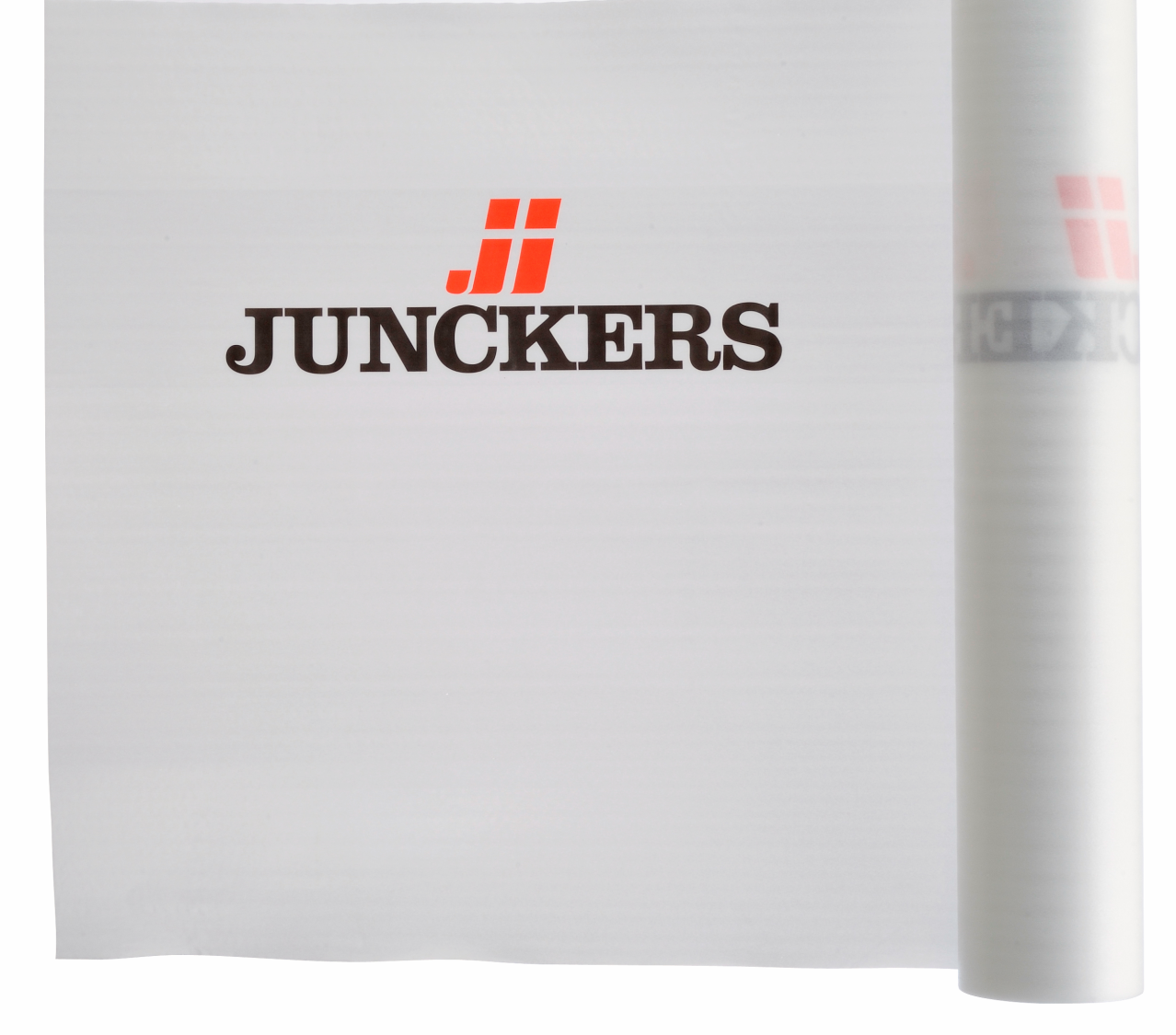

JUNCKERS SPORTS FOAM

Resilient underlay foam for Junckers A3 Portable Sports Floor.

Rolls of 75 m².

Item no. 098400: 10 mm

Item no. 098500: 5 mm

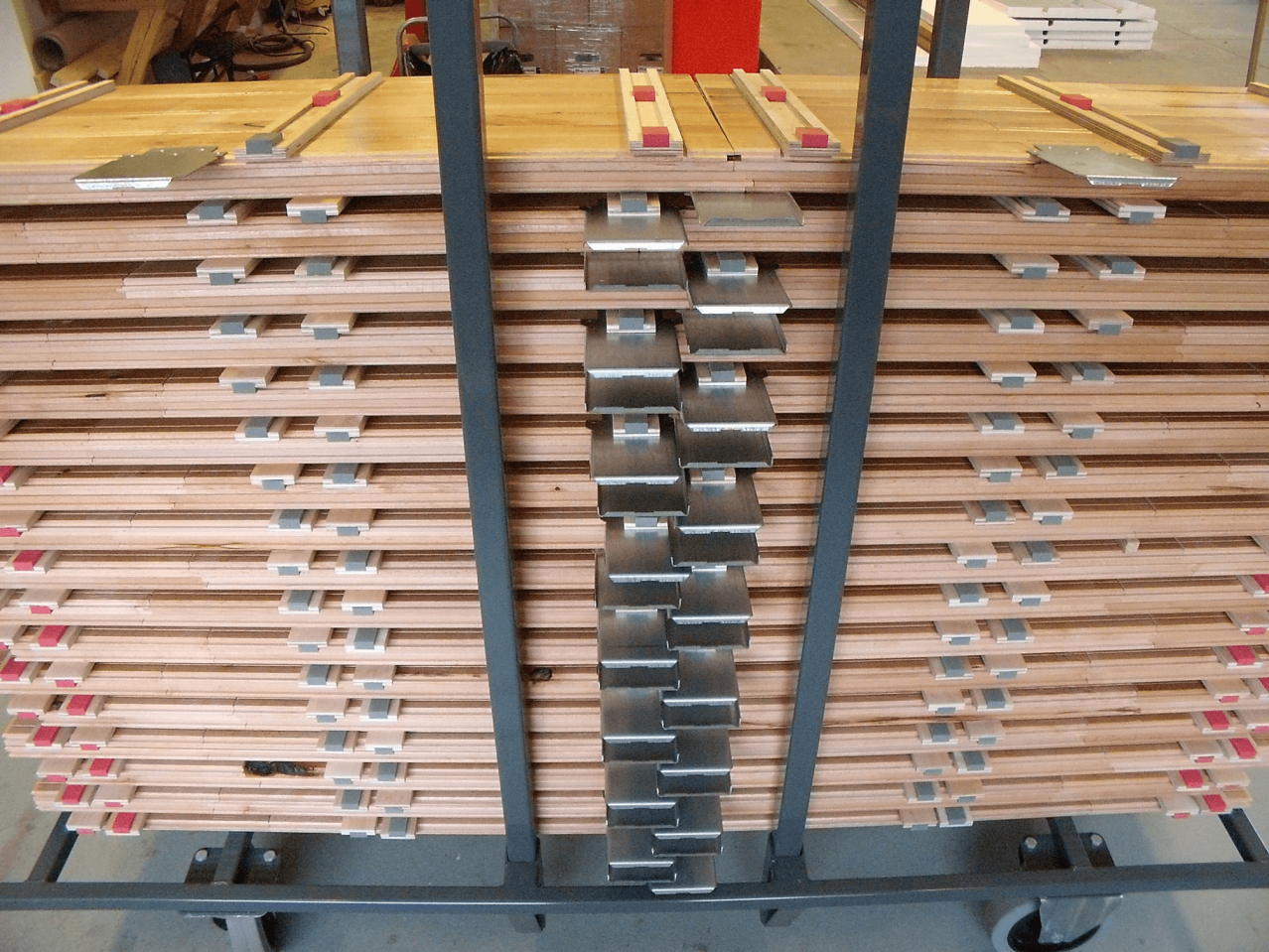

TRANSPORT CART

Special cart for transport and storage of portable floor panels.

Including:
Cart with 4 wheels.
6 detachable side supports / bars.

1 cart stores 40 panels.

Item no. 041600
